Порт-гайка

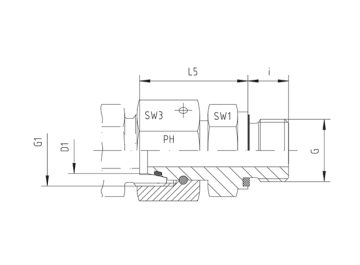

Адаптеры порт-гайка DIN 2353
| Робочие давление | Диаметр трубы | Резьба | |
| Бар | D1 | G | G1 |
| Series L | |||
| 500 | 6 | G 1/8" | M 12 x 1,5 |
| 500 | 6 | G 1/4" | M 12 x 1,5 |
| 400 | 6 | G 3/8" | M 12 x 1,5 |
| 500 | 8 | G 1/8" | M 14 x 1,5 |
| 500 | 8 | G 1/4" | M 14 x 1,5 |
| 400 | 8 | G 3/8" | M 14 x 1,5 |
| 400 | 8 | G 1/2" | M 14 x 1,5 |
| 500 | 10 | G 1/8" | M 16 x 1,5 |
| 500 | 10 | G 1/4" | M 16 x 1,5 |
| 400 | 10 | G 1/2" | M 16 x 1,5 |
| 400 | 10 | G 3/8" | M 16 x 1,5 |
| 400 | 12 | G 1/8" | M 18 x 1,5 |
| 400 | 12 | G 1/4" | M 18 x 1,5 |
| 400 | 12 | G 3/8" | M 18 x 1,5 |
| 400 | 12 | G 1/2" | M 18 x 1,5 |
| 400 | 15 | G 3/8" | M 22 x 1,5 |
| 400 | 15 | G 1/2" | M 22 x 1,5 |
| 250 | 15 | G 3/4" | M 22 x 1,5 |
| 400 | 18 | G 3/8" | M 26 x 1,5 |
| 400 | 18 | G 1/2" | M 26 x 1,5 |
| 315 | 18 | G 3/4" | M 26 x 1,5 |
| 250 | 22 | G 1/2" | M 30 x 2 |
| 250 | 22 | G 3/4" | M 30 x 2 |
| 250 | 22 | G 1" | M 30 x 2 |
| 250 | 28 | G 3/4" | M 36 x 2 |
| 250 | 28 | G 1" | M 36 x 2 |
| 250 | 35 | G 1 1/4" | M 45 x 2 |
| 250 | 42 | G 1 1/4" | M 52 x 2 |
| 250 | 42 | G 1 1/2" | M 52 x 2 |
| Series S | |||
| 800 | 6 | G 1/4" | M 14 x 1,5 |
| 800 | 8 | G 1/4" | M 16 x 1,5 |
| 800 | 8 | G 3/8" | M 16 x 1,5 |
| 800 | 10 | G 3/8" | M 18 x 1,5 |
| 800 | 10 | G 1/4" | M 18 x 1,5 |
| 630 | 10 | G 1/2" | M 18 x 1,5 |
| 630 | 12 | G 1/4" | M 20 x 1,5 |
| 630 | 12 | G 3/8" | M 20 x 1,5 |
| 630 | 12 | G 1/2" | M 20 x 1,5 |
| 630 | 14 | G 1/2" | M 22 x 1,5 |
| 630 | 16 | G 3/8" | M 24 x 1,5 |
| 630 | 16 | G 1/2" | M 24 x 1,5 |
| 420 | 16 | G 3/4" | M 24 x 1,5 |
| 420 | 20 | G 1/2" | M 30 x 2 |
| 420 | 20 | G 3/4" | M 30 x 2 |
| 420 | 20 | G 1" | M 30 x 2 |
| 420 | 25 | G 3/4" | M 36 x 2 |
| 420 | 25 | G 1" | M 36 x 2 |
| 420 | 30 | G 1" | M 42 x 2 |
| 420 | 30 | G 1 1/4" | M 42 x 2 |
| 420 | 38 | G 1 1/2" | M 52 x 2 |
